Pass-through dishwashers

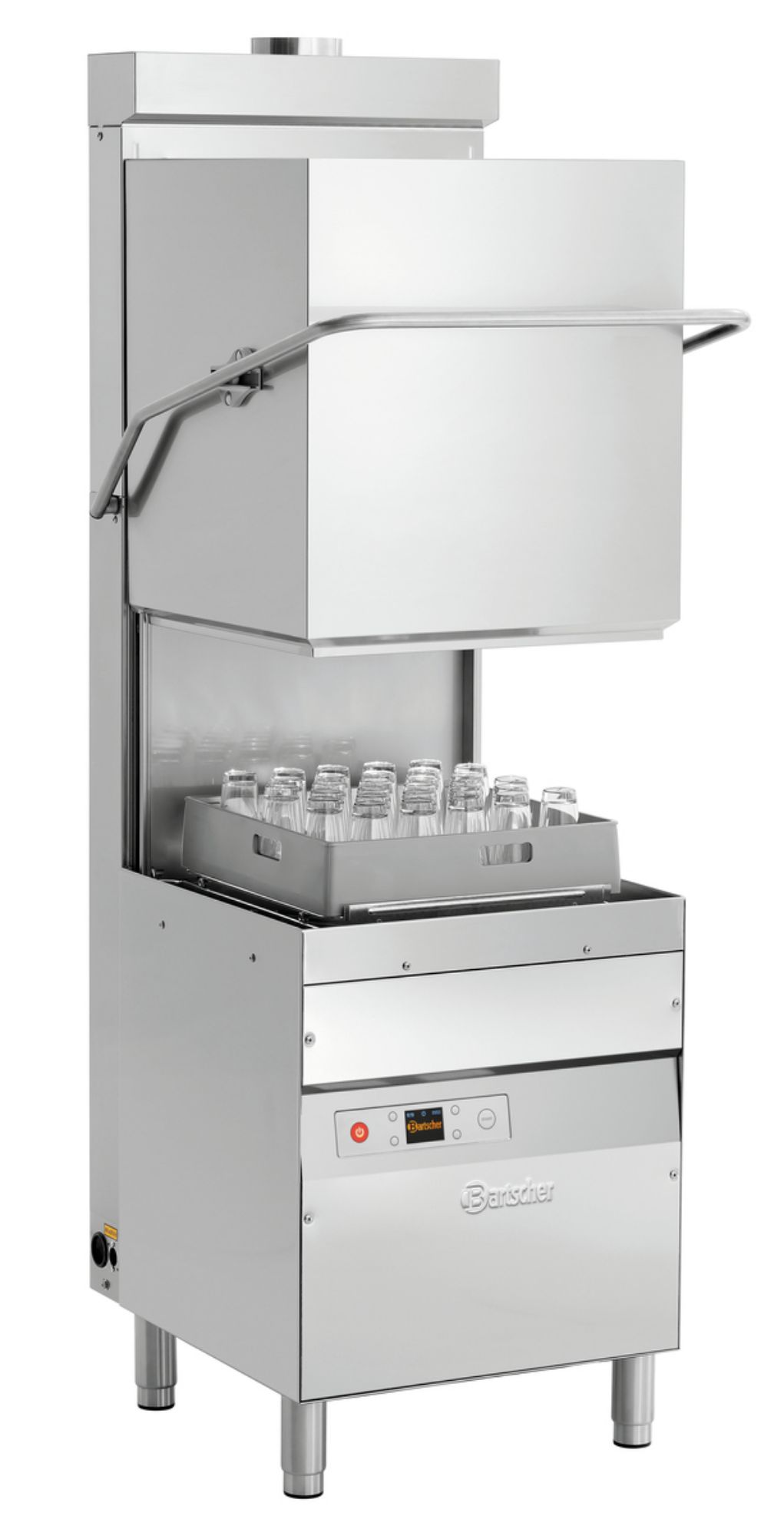

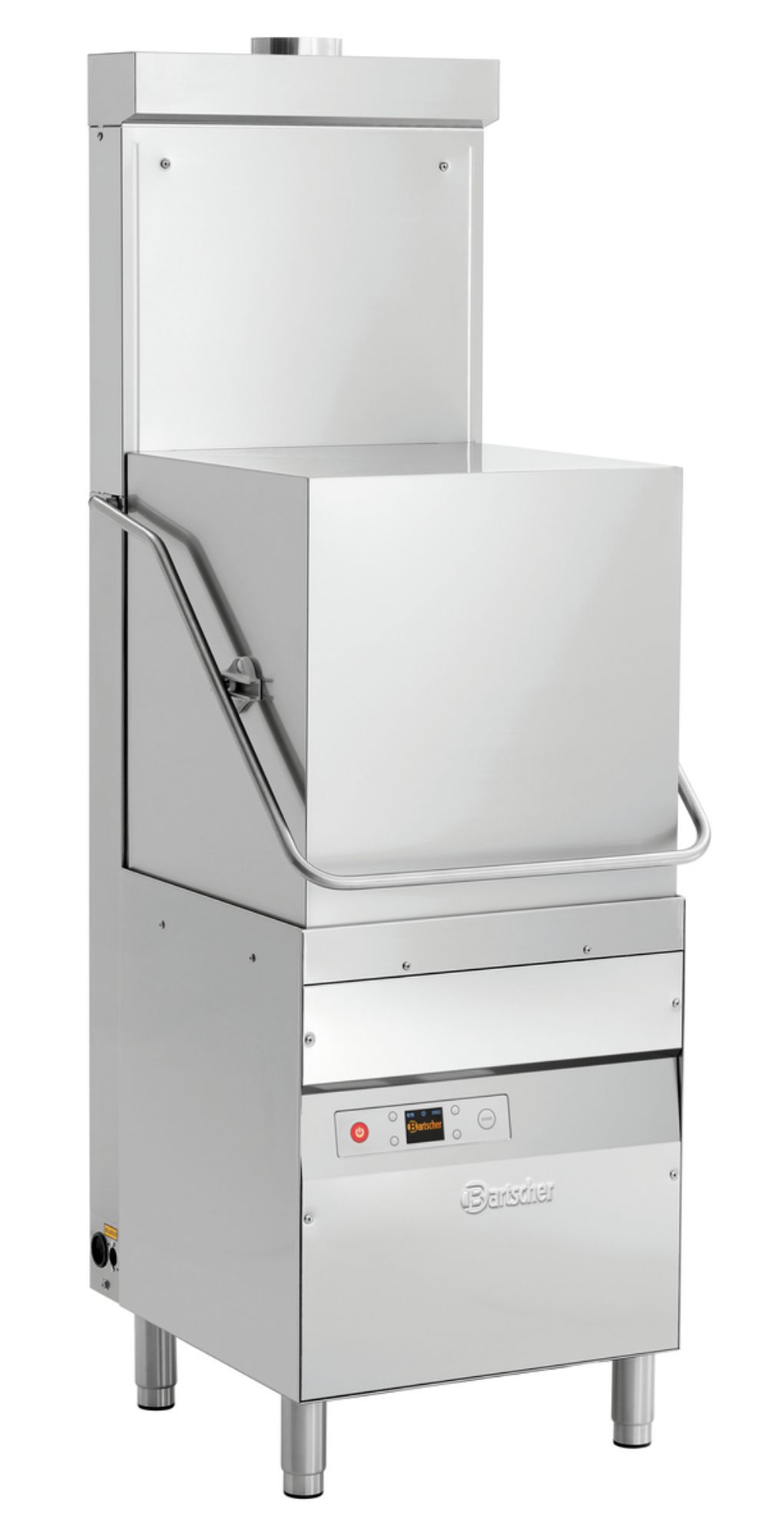

Bartscher Pass-through dishwasher DS Eco500LPR

Name: Bartscher Pass-through dishwasher DS Eco500LPR
SKU: 109251
Price: 11072.04 EUR
Availability: InStock

2 Years Parts Only

€11072.04 exVAT

€14687.40 exVAT

From €85.59/week with finance Learn more

Delivery: 5-7 days

SKU: 109251 | Size: (H)2115 x (W) 720 x (D)805

Features

• Properties: Thermal disinfection in accordance with DIN 10512, Spec 10534 ,Heat recovery ,Multi-lingual control menu ,Inline or corner installation

• Height when hood is open: 2065 2130 mm

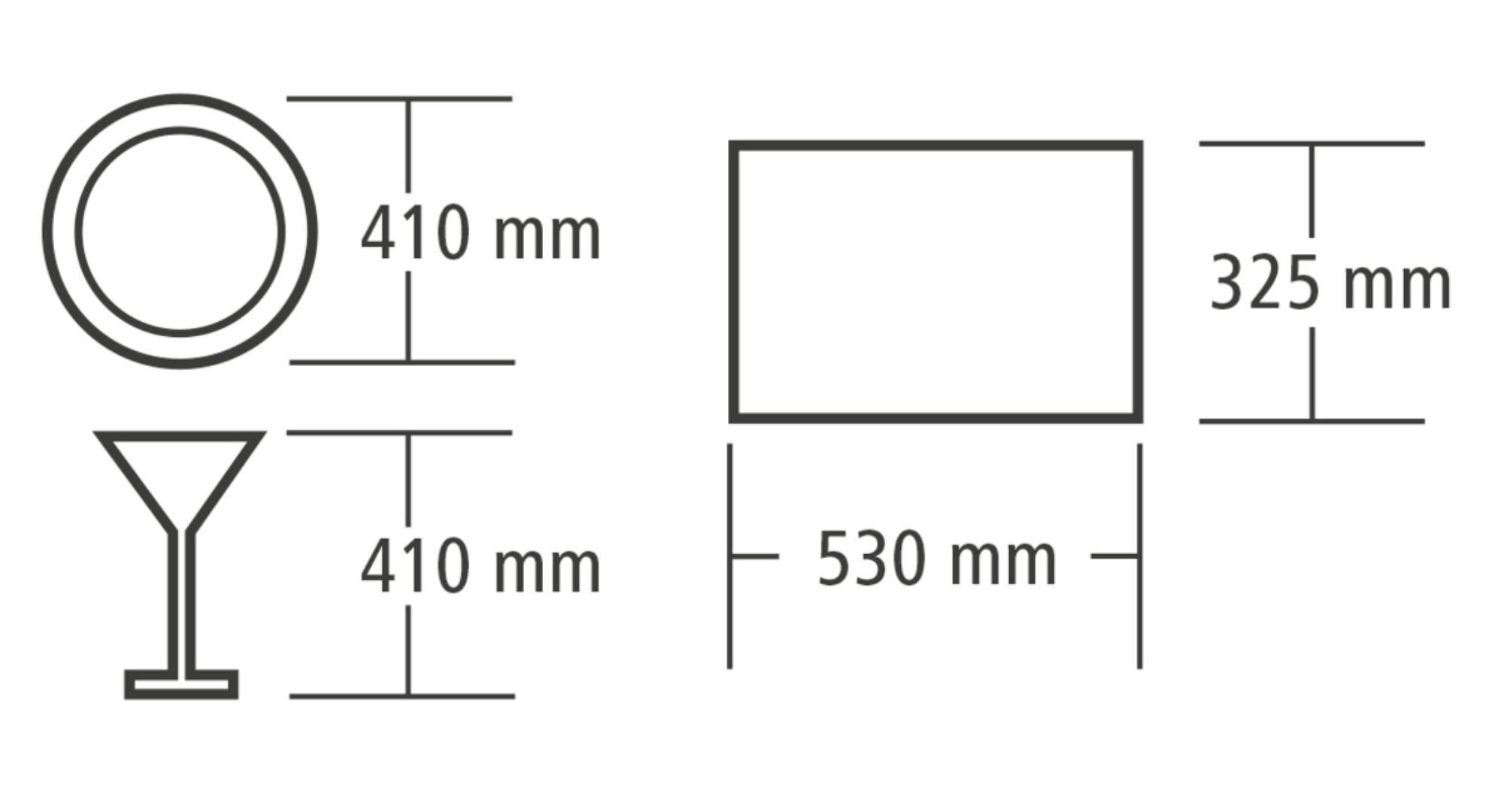

• Plate height max.: 410 mm

• Height-adjustable from: 1595 mm

• Boiler heater: 9 kW

• Water pressure: 2 4 bar

• Height-adjustable to: 1660 mm

• Tank heater: 2.7 kW

• Not included in delivery: Feed/removal table, pre-cleaning

• Water supply: G 3/4" M

• Output / hour max.: 12 45 baskets

• Number of wash programs: 5 preset programmes ,1 configurable programme

• Cleaning agent dosing pump: Yes

• Hood with automatic start function: Yes

• Lye pump: Yes

• Height-adjustable feet: Yes

• ON/OFF switch: Yes

• Basket dimensions: 500 x 500 mm

• Clear rinsing dosing pump: Yes

• Run-time: 50 / 90 / 120 / 180 / 300 / 600 seconds

• Water consumption at 2 bar: 3.5 litres / wash cycle

• Water softener: No

• Tank volume: 20 litre(s)

• Material: CNS 18/10

• Water intake temperature: 5 °C to 10 °C

• Dry-run protection: Yes

• Door contact switch: Yes

• Including: 1 universal basket (W 500 x D 500 x H 105 mm) ,1 plate basket (W 500 x D 500 x H 105 mm) ,1 cutlery basket (Ø 120 mm, H 120 mm) ,1 supply hose ,1 drainage hose

• Frequency: 50 Hz

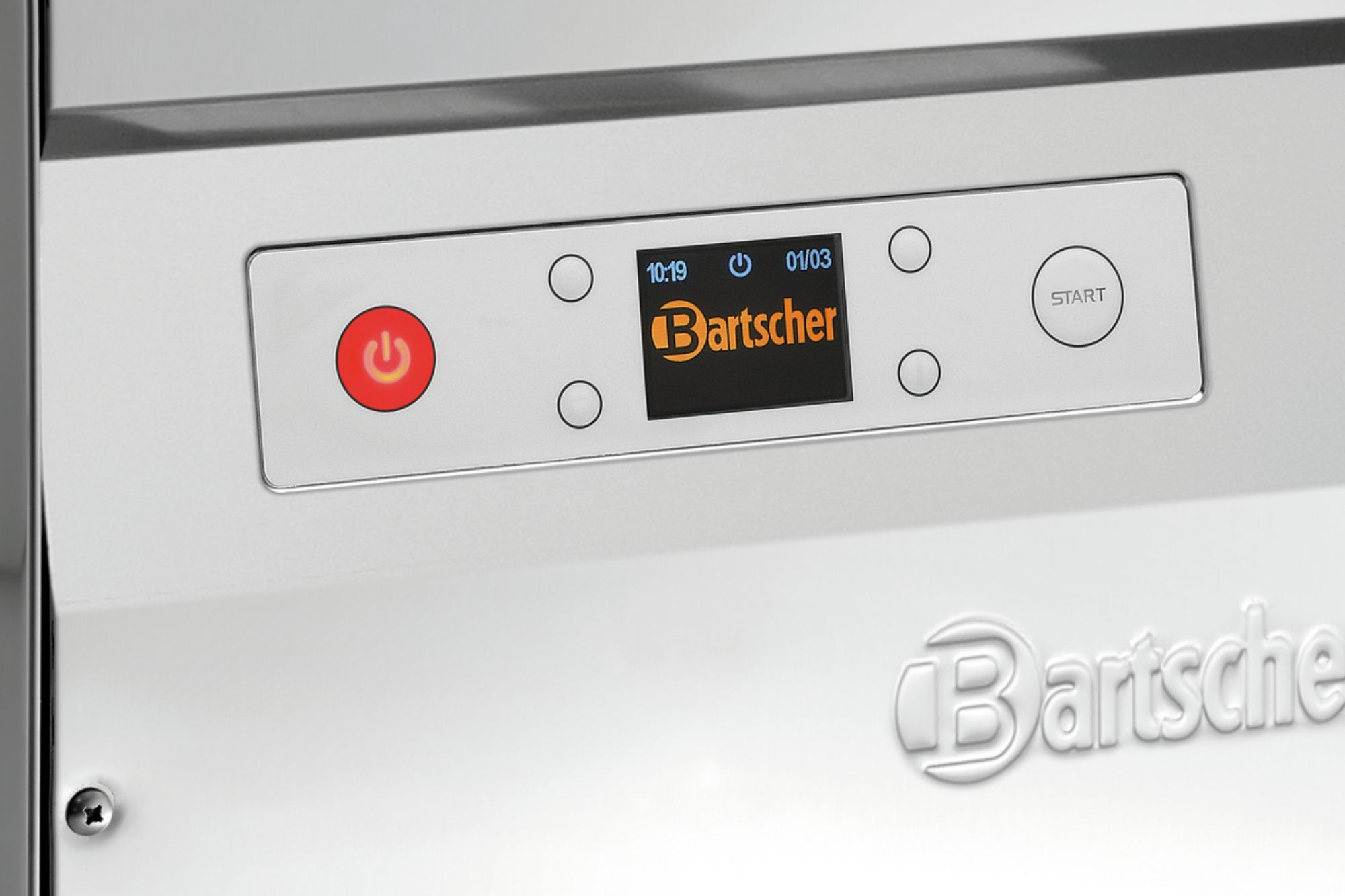

• Display: 9 languages ,Tank temperature and status ,Boiler temperature and status ,Programme code and name ,Colour display, 2.8 inch

• Safety thermostat: Yes

• Water outlet: Ø 24 mm

• Self-cleaning: Yes

• Equipment connection: 3 NAC

• Voltage: 400 V

• Control lamp: ON/OFF ,Start/Stop

• Glasses height max.: 410 mm

• Cold rinsing: No

• Double-walled: Yes

• Power: 9.9 kW

Product Description

A clean thing - for crockery and the environment. The DS Eco500LPR is a double-walled feed-through dishwasher with heat recovery. It impresses users with its top quality, great cleaning power, and short cycle time. The thermal disinfection ensures perfectly clean, germ-free crockery and meets hygiene standards.

Warranty Information

2 Years Parts Only
