Commercial Undercounter Dishwashers

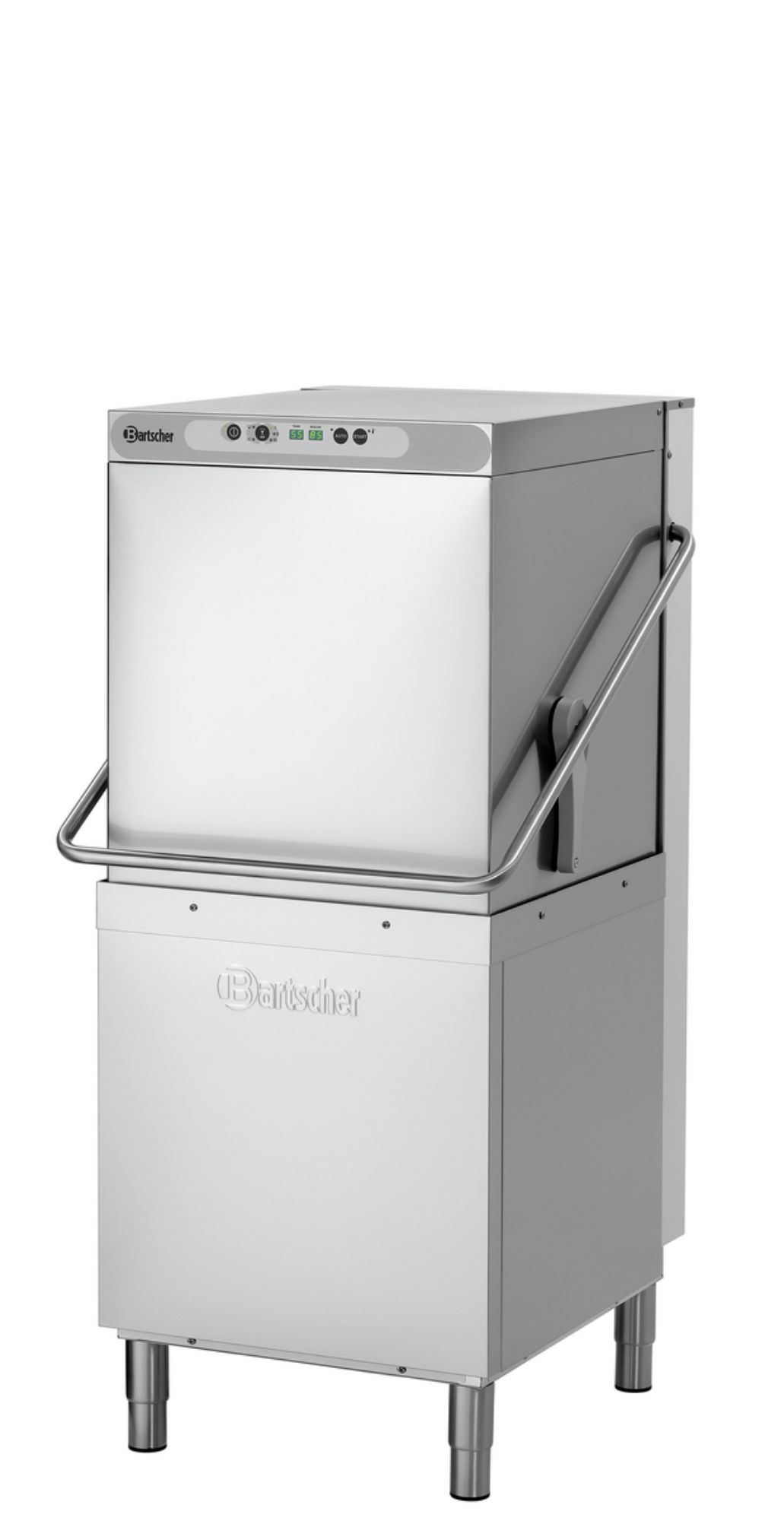

Bartscher Pass-through dishwasher DS 500 SR

Name: Bartscher Pass-through dishwasher DS 500 SR
SKU: 109343
Price: 6124.02 EUR
Availability: InStock

2 Years Parts Only

€6124.02 exVAT

€8123.70 exVAT

From €48.07/week with finance Learn more

Delivery: 5-7 days

SKU: 109343 | Size: (H)1535 x (W) 725 x (D)955

Features

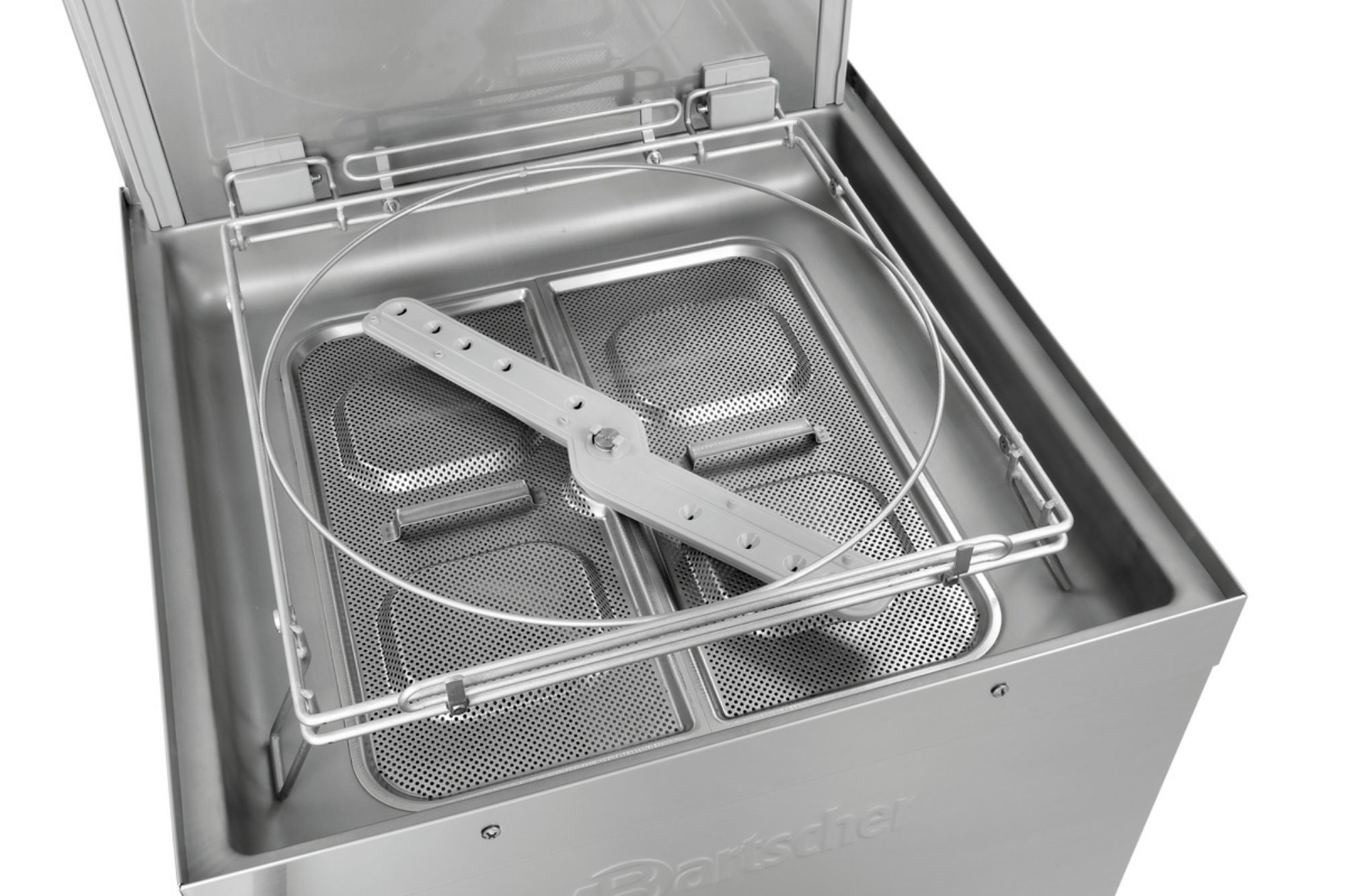

• Properties: Lift system ELS (maximum lifting system with little effort) ,DuoFlo pump (less pump loss) ,Energy-Saving-System (boiler is only active when necessary) ,EDS drain system ,Flat tank with large filter ,Inline or corner installation ,Double-walled tank

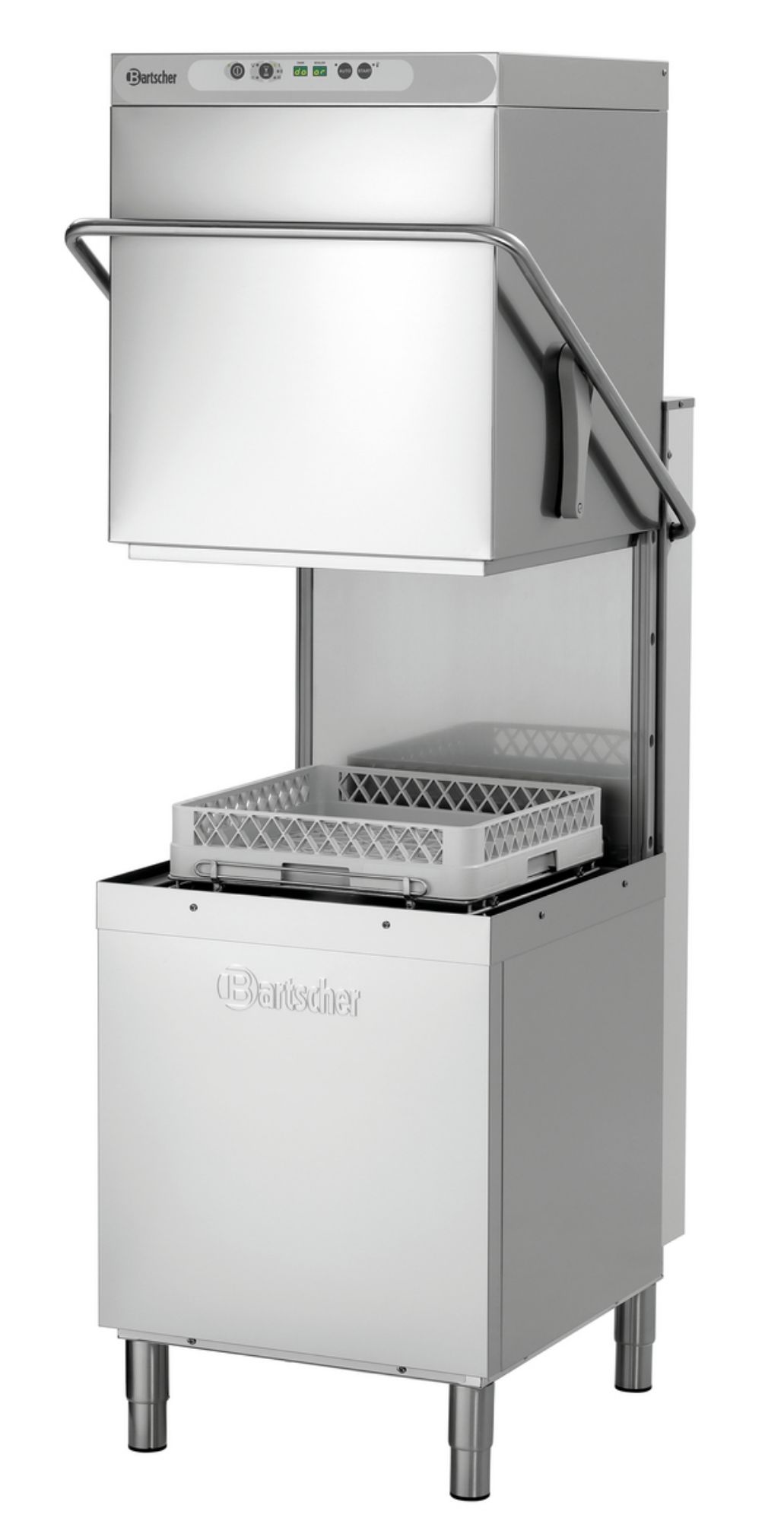

• Height when hood is open: 2055 2120 mm

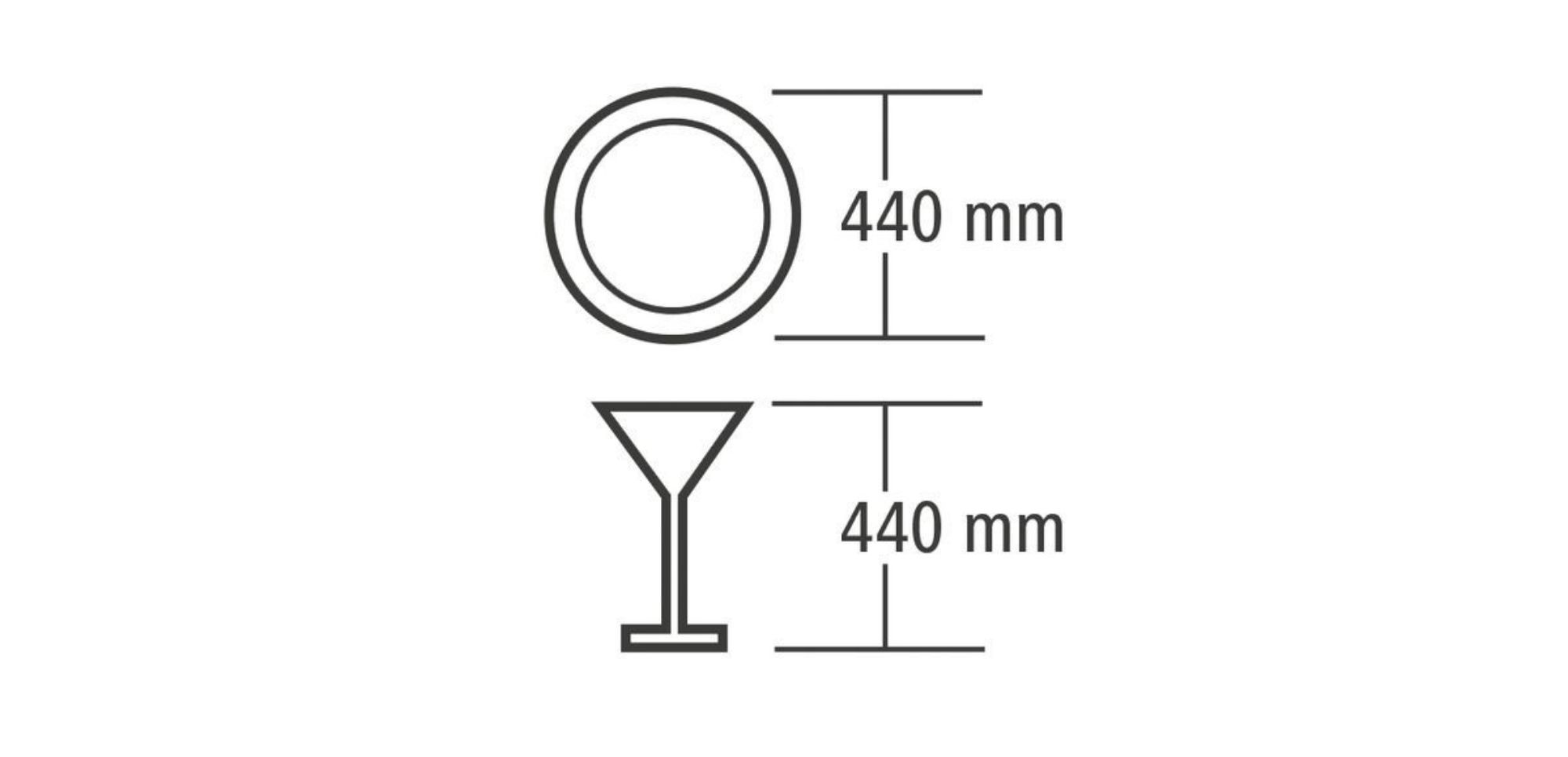

• Plate height max.: 440 mm

• Height-adjustable from: 1535 mm

• Boiler heater: 8 kW

• Water pressure: 2 4 bar

• Height-adjustable to: 1600 mm

• Tank heater: 2.5 kW

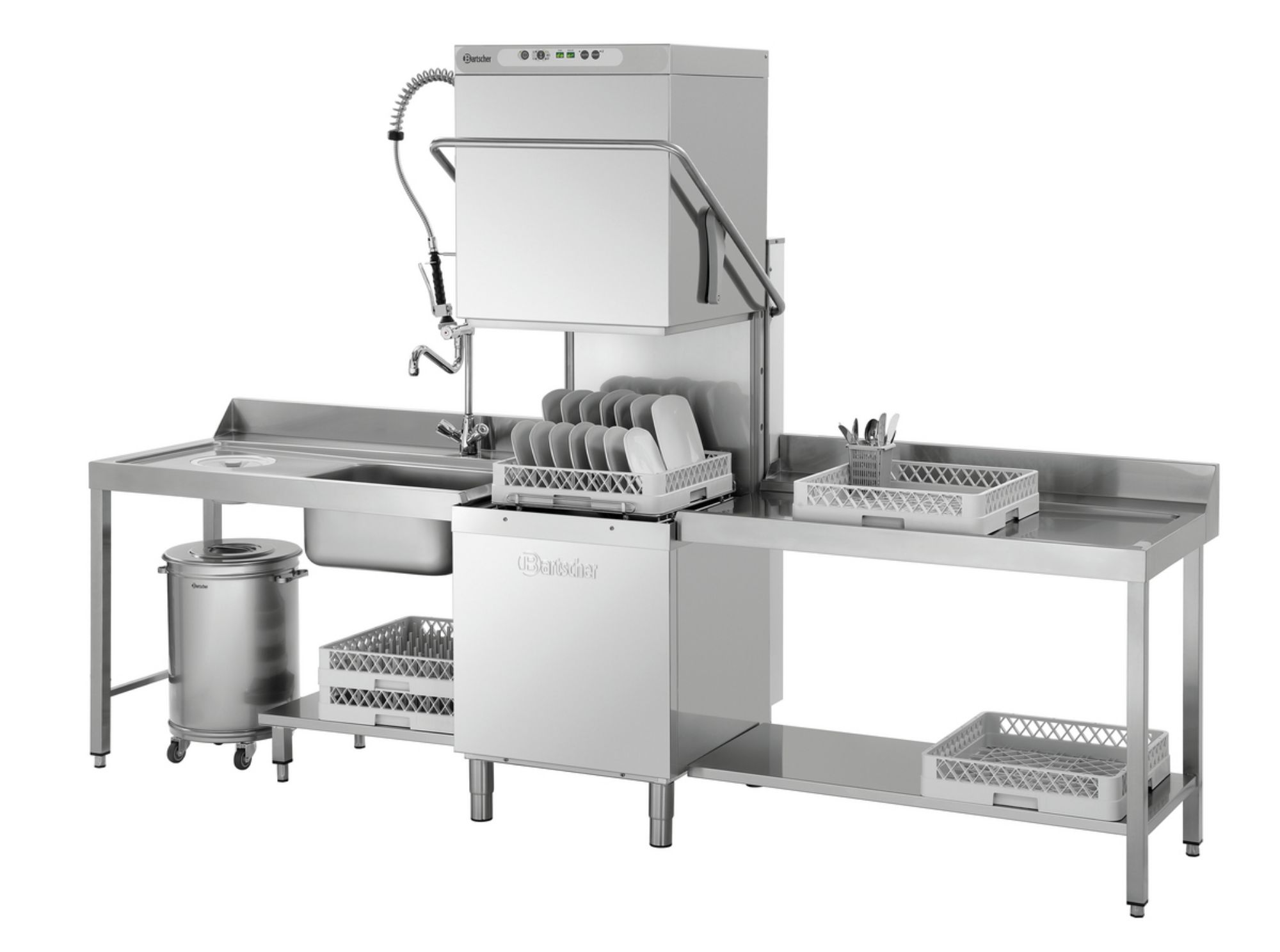

• Not included in delivery: Feed/removal table, pre-cleaning

• Water supply: G 3/4“

• Output / hour max.: 60 baskets

• Number of wash programs: 4

• Cleaning agent dosing pump: No

• Hood with automatic start function: Yes

• Lye pump: No

• Height-adjustable feet: Yes

• ON/OFF switch: Yes

• Basket dimensions: 500 x 500 mm

• Clear rinsing dosing pump: Yes

• Run-time: 60 / 120 / 180 seconds

• Water consumption at 2 bar: 2.4 litres / wash cycle

• Water softener: No

• Tank volume: 22 litre(s)

• Material: CNS 18/10

• Water intake temperature: 55 °C

• Dry-run protection: Yes

• Door contact switch: Yes

• Including: 1 universal basket ,2 plate baskets ,1 cutlery holder ,Spare sealing ring supply hose ,1 water outlet hose ,1 water supply hose

• Frequency: 50 Hz

• Safety thermostat: Yes

• Water outlet: Ø 28 mm

• Self-cleaning: Yes

• Equipment connection: 3 NAC

• Voltage: 400 V

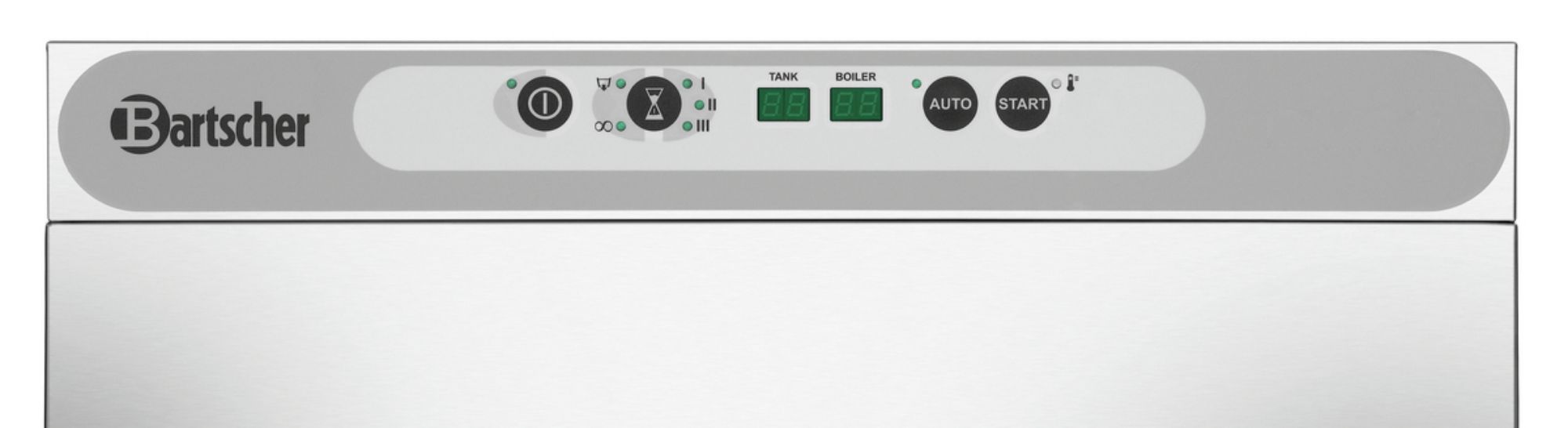

• Control lamp: ON/OFF ,Heat up ,Draining ,Programs I / II / III / continuous operation ,Automatic

• Glasses height max.: 440 mm

• Cold rinsing: No

• Double-walled: No

• Power: 8.7 kW

• productType: HAWA

Warranty Information

2 Years Parts Only
