Pass-through dishwashers

Bartscher Basket transport dishwasher KTS500 R

Name: Bartscher Basket transport dishwasher KTS500 R
SKU: 110630
Price: 17442.04 EUR
Availability: OutOfStock

2 Years Parts Only

€17442.04 exVAT

€23137.40 exVAT

From €134.83/week with finance Learn more

Out Of Stock

Delivery: 5-7 days

SKU: 110630 | Size: (H)672 x (W) 415 x (D)485

Features

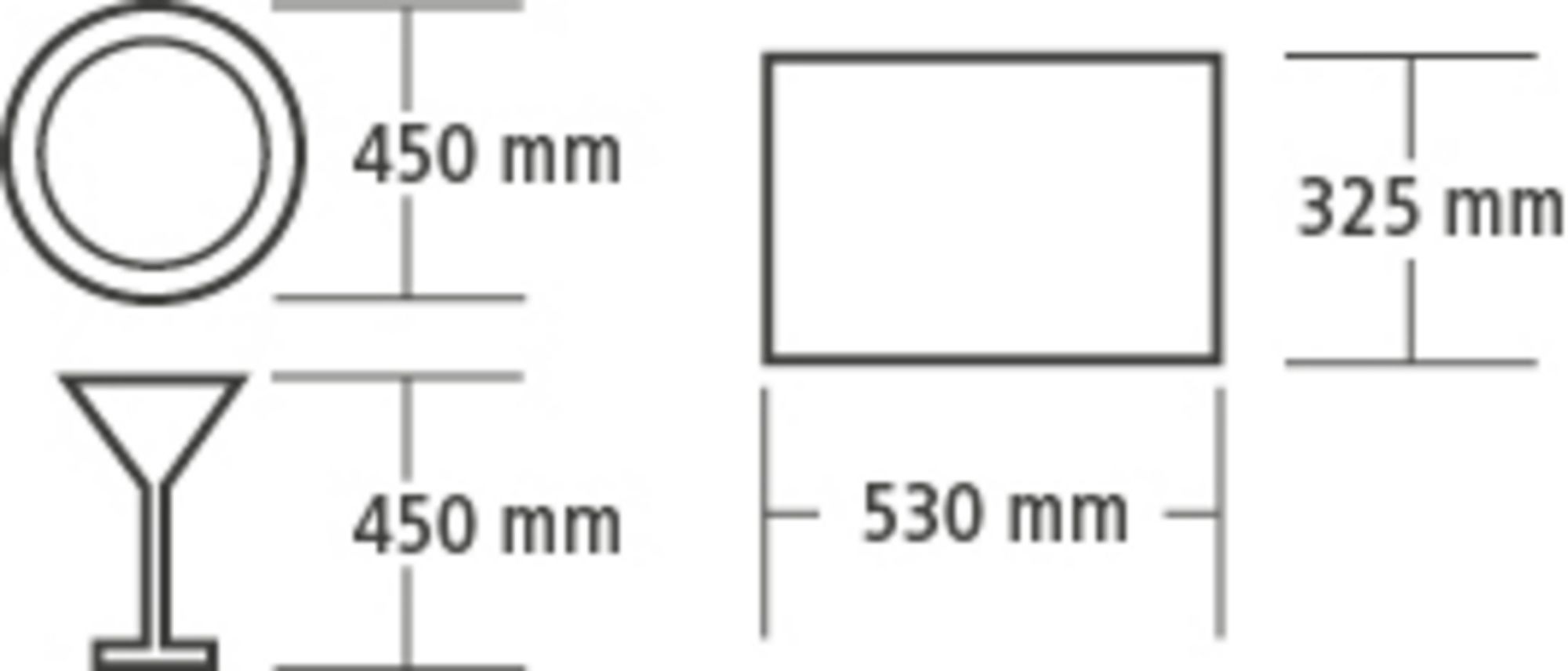

• Glasses height max.: 450 mm

• Water pressure: 2 5 bar

• Water outlet: 1 x 1/4 G

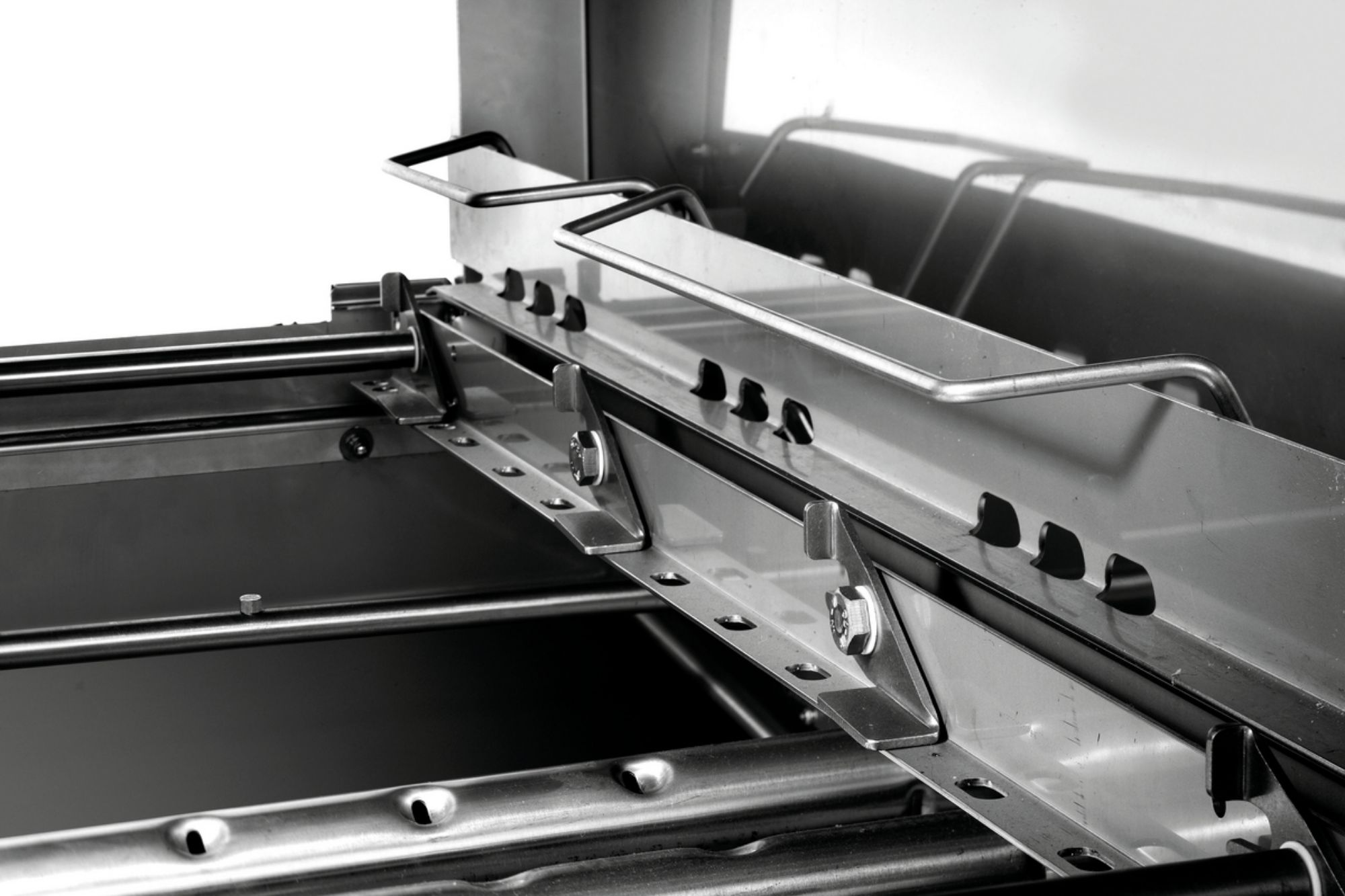

• Model: Transport system, stainless steel ,Left-running appliance

• Equipment connection: 3 NAC

• Water consumption at 2 bar: 150 l/hour.

• Tank heater: 9 kW

• Water intake temperature: 55 °C (Cold water connection on request)

• Door contact switch: Yes

• Lye pump: No

• Cleaning agent dosing pump: No

• Plate height max.: 450 mm

• Voltage: 400 V

• Control lamp: Heat up ,In operation

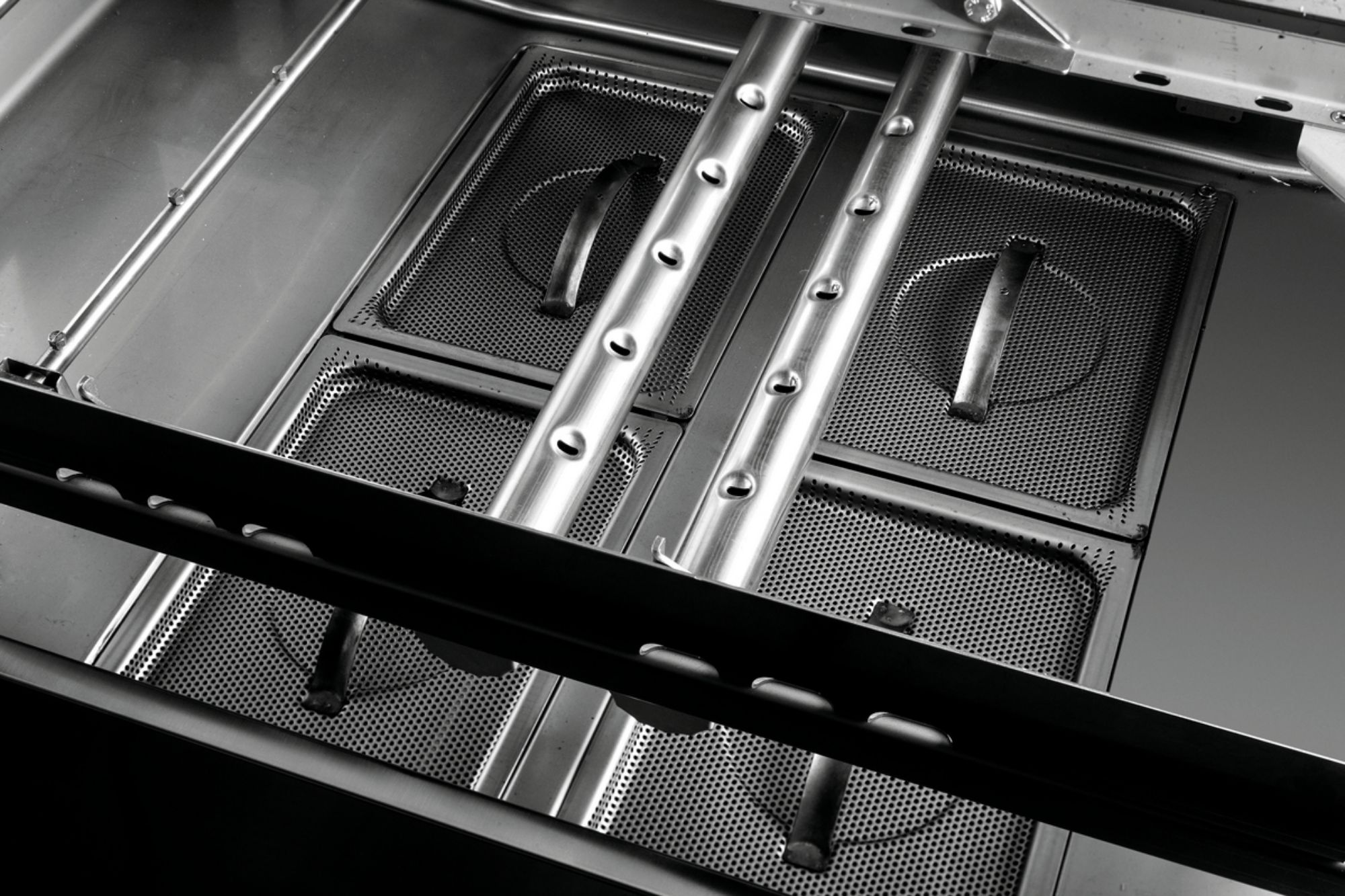

• Properties: 3-stage filtration system ,Simple operation ,Easy removal of the filter ,Electronic thermo-stop ,Clear rinse in 2 stages ,Multi-lingual control menu ,Self-diagnosis system ,Rinsing arm sets, can be removed without tools ,Stand-by function ,Tank filter system with 3 protection levels ,Vertically mounted and self-cleaning wash pumps with overload protection ,Heat recovery on request at water inlet temperature of 5-10 °C

• Output / hour max.: 70 100 baskets

• Not included in delivery: Waste water hose

• Basket dimensions: 500 x 500 mm

• Material: Stainless steel

• Display: yes

• Frequency: 50 Hz

• Power: 19 kW

• Number of wash programs: 2

• Dry-run protection: No

• Height-adjustable to: 1635 mm

• Boiler heater: 9 kW

• Cold rinsing: No

• Door double-walled: Yes

• ON/OFF switch: Yes

• Tray size max.: 530 x 325 x 25 mm

• Tank volume: Rinsing tank: 80 litres ,Boiler: 28,5 litres

• Safety thermostat: Yes

• Water softener: No

• Height-adjustable from: 1565 mm

• Height when door is open: 1900 mm

• Including: 1 cutlery holder ,1 glasses basket ,1 tray basket ,1 plate basket

• Clear rinsing dosing pump: No

• Self-cleaning: No

• Double-walled: No

• Height-adjustable feet: Yes

Product Description

A reliable partner for high-intensity washing. The KTS500 with its left-running transport system is really easy to use and can be tailored to everyday needs. It can be used for washing plates, cups, glasses and trays.

Warranty Information

2 Years Parts Only
